Rounded ridge cap roll forming machine
Download PDF file

Rounded ridge cap is a typical representative of flashings, designed for connection of the slope of roof in it's highest position.
It is an important component in the construction of the roof and occupies a dominant position.
In addition to the decoration function, it also has two main functions:

  • Protection from leaking, ingression of rain or melt water into the under-roof space.
  • Provision of the necessary clearance for ventilation of the under-roof space, so that the vapor can be led out of the elements of the roofing pie and insulation is dried up.

Rounded ridge cap roll forming machine is integral part of the rounded ridge cap roll forming line.
Group of companies «Rusсana Engineering» offers for your consideration Rounded ridge cap roll forming line.

Raw material requirements

Light-gauge galvanized steel with polymer coating: polyester, plastisol
Zinc coating to range 100…275 g/m²
Yield strength 280…350 N/mm²

Coil thickness 0,45 mm up to 0,55 mm
Coil width 416,6 mm ±1 mm
General characteristics
Line operating mode adjustable /automatic
Installed power capacity, no more than 12 kW
Roll forming speed, no more than 5…7  rm/min
Supply voltage at frequency of 50 Hz ± 0.4Hz 380 V

Dimensions (LxWxH), no more than

11500х2250х1450 mm
Weight, no more than 3300 kg
Required operation personnel 1-2 persons

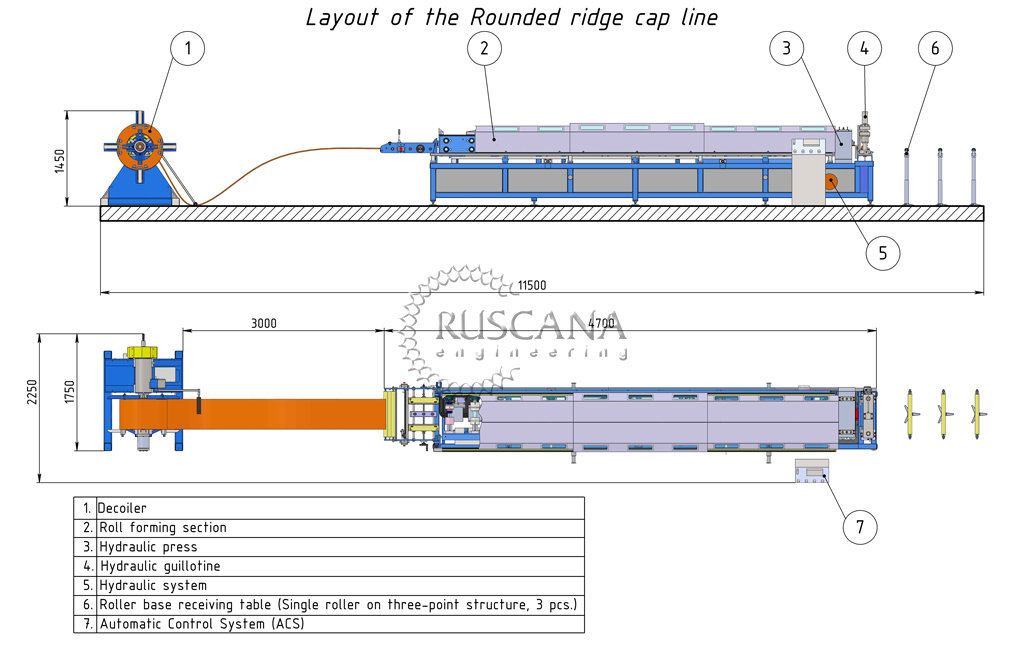

Line configuration
1. Decoiler
2. Roll forming section
3. Hydraulic press
4. Hydraulic guillotine
5. Hydraulic system
6. Roller base receiving table (Single roller on three-point structure, 3 pcs.)

7. Automatic Control System (ACS)

Item Description

Hydraulic mandrel expansion.

Is used for decoiler and intendant for coil reliable fixation on the decoiler’s shaft.

On and Off is done with the button.
Receiving table roller.

Is intendant for receiving ready product.
