Ruscana Engineering Group presents Standing Seam roll- former, model PSR-003, with automatic control system. This equipment is designed for roll forming standing seam profiles using galvanized steel including polymer coating with a metal thickness of 0.45 to 0.7 mm and copper, aluminum, zinc-titanium, with a metal thickness up to 0.8 mm.
Advantages of the PSR-003:
- increased rigidity and strength of the frame;
- process of reconfiguration of the profile’s width is mechanized;
- roofing panels of straight, trapezoidal and conic shapes are available;
- 1 inch and 1.5 inch panel profiles in one machine by changing profiling units;
- increased lifespan and durability due to high quality hardened stainless steel;
- good quality profiles using a wide range of raw materials (steel, copper, aluminum);
- 6 / 7 roll forming stations with automatically shaft gaps readjustment;
- built-in automatic control system (ACS) with user-friendly interface allows to automate the process of profile production;
- reliable operation at low temperatures (below 0 C)
- the compact size of the machine allows its transportation in the body of a pickup truck
General characteristics:
|
Raw material requirements: Roll forming speed: |

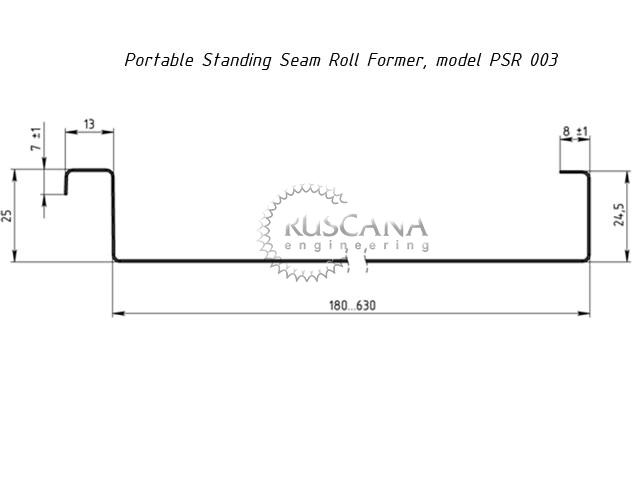

Profile drawing |
