La clôture métallique est une nouvelle solution à l'approche classique de la construction de clôtures.
Il s'agit d'un rouleau formé de tôle de faible épaisseur avec revêtement en polymère.
Étant une solution originale d'aménagement paysager, une clôture en palissade métallique imite une clôture naturelle en bois et, grâce à sa structure, permet de créer un aspect attrayant autour du territoire clos.
Les avantages d'une clôture métallique sont l'esthétique, la conception robuste, l'allègement et le coût abordable.Groupe d'entreprises "Ruscana Engineering" fabrique des profileuses pour profil de production "Palissade métallique" de tout type. S'il est nécessaire d'augmenter la productivité ou le produit gamme, nous sommes également prêts à vous offrir une ligne pour la production d'une palissade en métal en flux simple ou en double flux. La ligne de laminage double flux permet de produire deux types de profils sur un même équipement, sans reconfiguration.
| DISTINCTIVE FEATURES |
| High production speed. |
|
Variety of metal picked fence types. For today, there are lots of fence types and design solutions execution of metal picked fence. Company «Ruscana Engineering» is ready to offer you a standard fence types and develop and manufacture machine to produce original look metal picked fence in accordance with your sketch.
|
|
Single stream and double stream roll forming line. In order to increase performance and save production space, company «Ruscana Engineering» offers you a single stream and double stream roll forming lines. Double stream roll forming line allows to make 2 types of metal picked fence in one machine without re-adjustment.
|
|
Safety. The rolling mill zone and drive mechanisms are covered with protective covers, which ensures safe working conditions and excludes direct entry of dust, moisture and foreign objects.
|
|
Quality components. Quality electronic, hydraulic and pneumatic components of the leading industry suppliers: spherical, self-centering bearing units (Askubal, Germany); hydraulic and pneumatic components (Made in Italy); electronic components (Omron, Japan). The shafts of the rolling mill are made of solid rolled steel and is being heat treated and polished, which makes it possible to achieve a high resistance to deflection and to minimize beating. Volume hardening of profiling rollers, allows to increase their life in 50 times
|
|
Competitive price. The price of equipment is lower than European and North American manufacturers have for similar equipment.
|
|
Warranty and post warranty service.
|
|
| GENERAL INFORMATION П AND М-PROFILE |

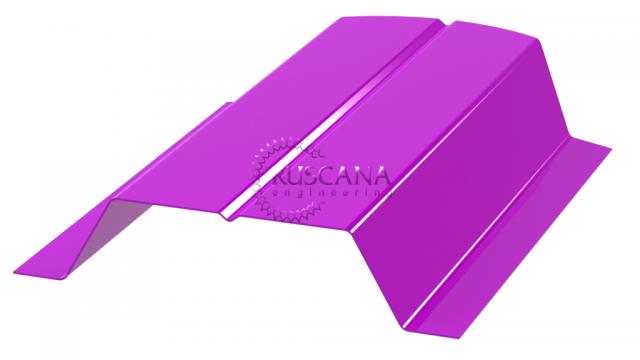

| П-PROFILE |

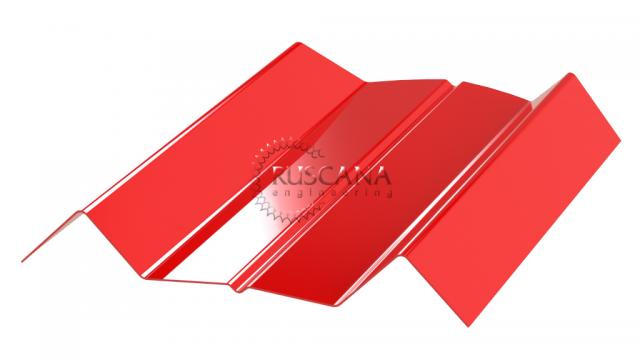

М-PROFILE |
 |
 |
| Raw material requirements |
| Material |
Light-gauge galvanized steel with polymer coating: polyester, plastisol Zinc coating to range 100…275 g/m² Yield strength 280…320 N/mm²
|
| Coil thickness |
0,45 mm…0,7 mm |
| Coil width |
156 mm |
| General characteristics |
| Line operating mode |
manual/automatic |
| Installed power capacity, no more than |
7 kW |
| Roll forming speed, no more than |
20 m/min |
| Supply voltage at frequency of 50 Hz±0,4Hz |
220/380V |
| Supply voltage at frequency of 60 Hz |
230 V 3 phase |
| Dimensions (LxWxH), no more than |
11300х2200х1400 mm |
| Weight, no more than |
2600 kg |
| Required operation personnel |
1-2 persons |
| Line configuration |
| 1. Decoiler |
| 2. Roll forming section |
| 3. Guillotine |
| 4. Receiving table |
| 5. Automatic Control System (ACS) |
| Download PDF file |
|
|
| GENERAL INFORMATION TRAPEZIUM AND PLANK |

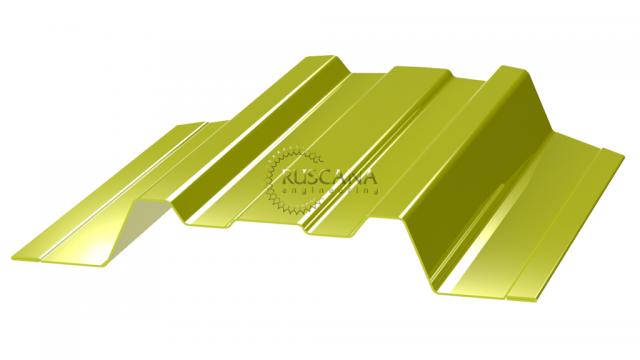

| TRAPEZIUM 17 |

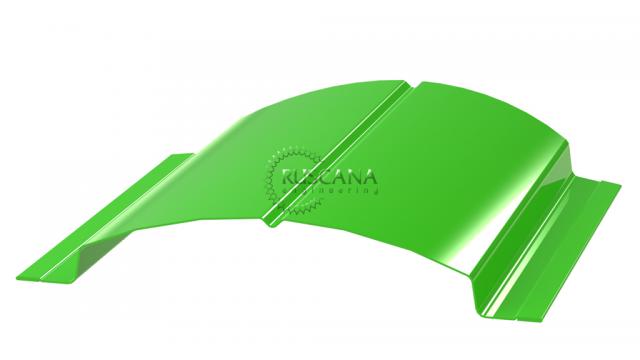

PLANK 19 |
 |
 |
| Specification |
Trapezium 17 |
Plank 19 |
| Raw material requirements |
| Material |
Light-gauge galvanized steel with polymer coating: polyester, plastisol Zinc coating to range 100…275 g/m² Yield strength 280…320 N/mm²
|
| Coil thickness |
0,45 mm…0,7 mm |
0,45 mm….0,55 mm |
| Coil width |
156,2±1 mm 139±1 mm
|
156,2±1 mm |
| General characteristics |
| Line operating mode |
manual/automatic |
| Installed power capacity, no more than |
6 kW |
| Roll forming speed, no more than |
20 m/min |
| Supply voltage at frequency of 50 Hz±0,4Hz |
220/380V |
| Supply voltage at frequency of 60 Hz |
230 V 3 phase |
| Dimensions (LxWxH), no more than |
11300х2200х1400 mm |
| Weight, no more than |
2600 kg |
| Required operation personnel |
1-2 persons |
| Line configuration |
| 1. Decoiler |
| 2. Roll forming section |
| 3. Guillotine |
| 4. Receiving table |
| 5. Automatic Control System (ACS) |
|
| TRAPEZIUM 17 |
PLANK 19 |
| Download PDF file |
Download PDF file |
|
