Eave trim is a typical flashing for roofing.
Eave trim is installed on the board, which is called the face board.
In addition to the decoration function, it protects the integrity of the roof and protects it from damage.
Eave trim is mounted after the roof boarding is ready and insulation material is placed under it.
Eave trim do the following functions:
- protects from wetting the face board of the eaves in the event of precipitations;
- prevents the ingress of moisture under the roof and into the interior;
- gives an attractive appearance
Eave trim roll forming machine is integral part of the eave trim roll forming line.
Group of companies «Rusсana Engineering» offers for your consideration Eave trim roll forming line.
| GENERAL INFORMATION |
| Raw material requirements |
| Material |
Light-gauge galvanized steel with polymer coating: polyester, plastisol
Zinc coating to range 100…275 g/m²
Yield strength 280…350 N/mm²
|
| Coil thickness |
0,45 mm up to 0,6 mm |
| Coil width |
178 mm ±0,5mm |
| General characteristics |
| Line operating mode |
semi automatic/automatic |
| Installed power capacity, no more than |
8 kW |
| Maximum cutting speed, no more than |
20 m/min |
| Supply voltage at frequency of 50 Hz ± 0.4Hz |
380 V |
|
Dimensions (LxWxH), no more than
|
9900х2000х1400 mm
|
| Weight, no more than |
2400 kg |
| Required operation personnel |
1-2 persons |

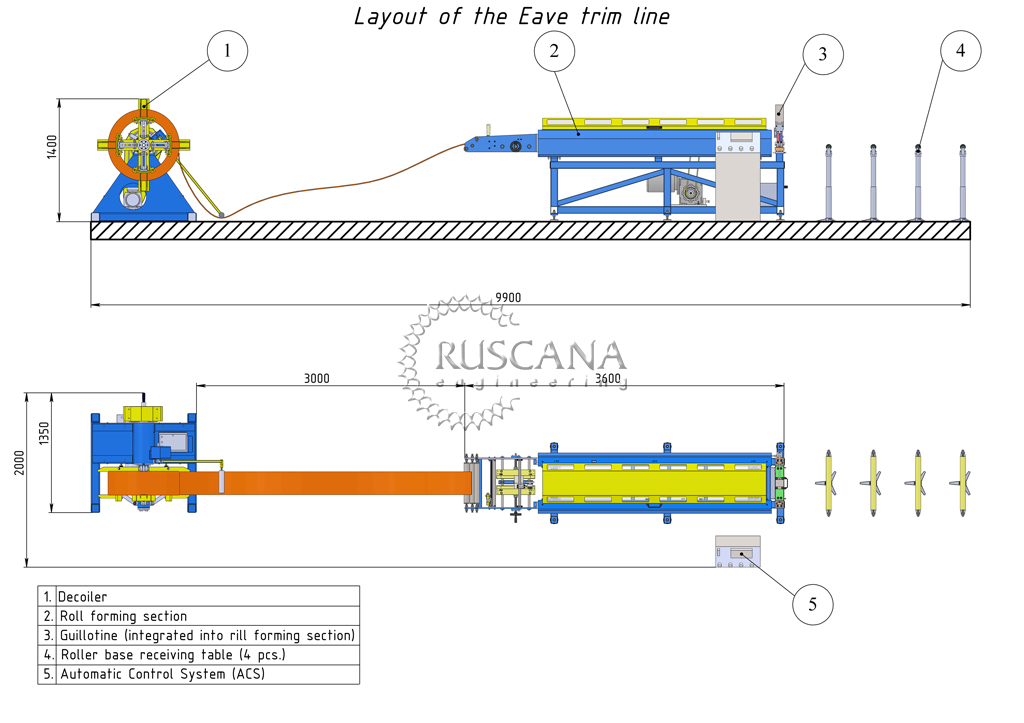

| Line configuration |
| 1. Decoiler |
| 2. Roll forming section |
| 3. Guillotine (integrated into rill forming section) |
| 4. Roller base receiving table ( 4 pcs.) |
|
5. Automatic Control System (ACS)
|
|
| OPTIONS |
| Item |
Description |
|
Hydraulic mandrel expansion.
|
Is used for decoiler and intendant for coil reliable fixation on the decoiler’s shaft.
On and Off is done with the button. |
| Receiving table roller. |
Is intendant for receiving ready product.
|
|

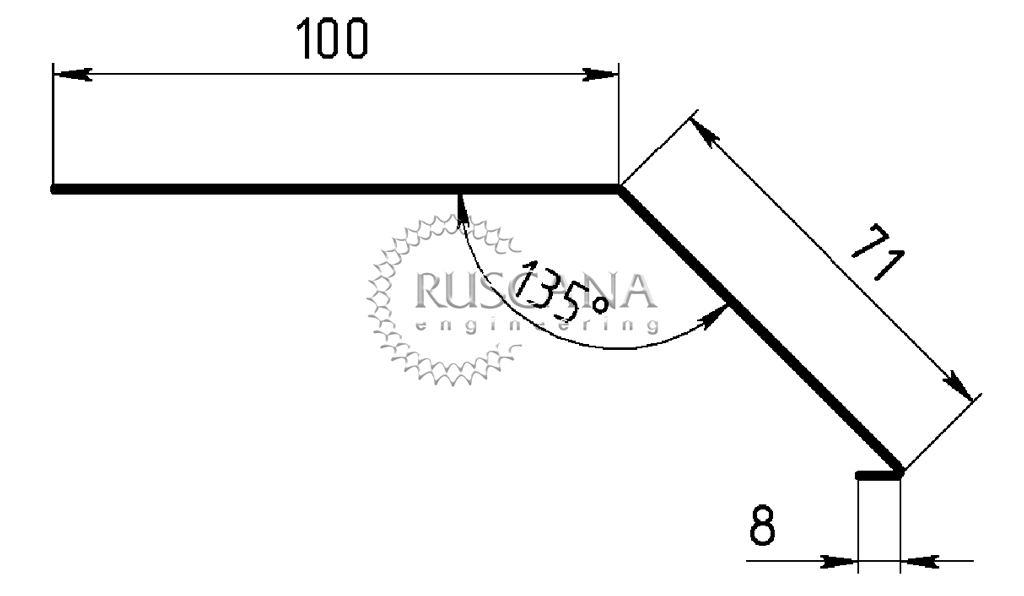

| PROFILE DRAWING |
 |
